Screen Cylinders / Rotary Screen Drums

Wedge Wire cylinders are used as rotary screens, collectors such as screen laterals and nozzles,
resin traps, in-line strainers, water intake screens, well screens, as well as many other applications
involving liquid / solids separation.

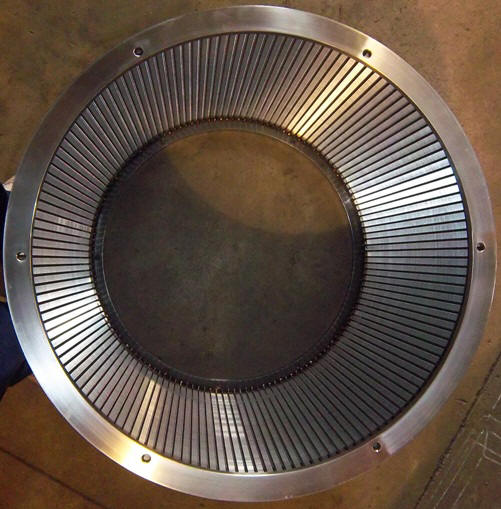

External-fed 24" diameter screen cylinder with flanges

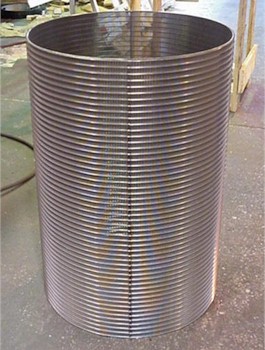

Wedge Wire screen cylinders can be designed with slot openings and wires running radially
on the outside surface of the screen cylinder (above) or they can be positioned axially on the
inside of the cylinder (below).

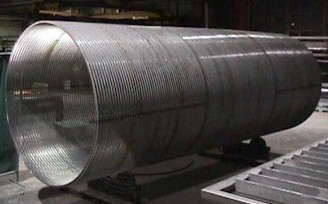

72" diameter internally-fed screen cylinder

Screen cylinders are manufactured in various diameters from 1/2" pipe size to 36" diameter.
Screen cylinders can be fabricated into much larger sizes. Each intersection of wedge wire
and support rod is welded for strength and durability. Various wedge wire and support rod
combinations can be used to produce the best screen design.

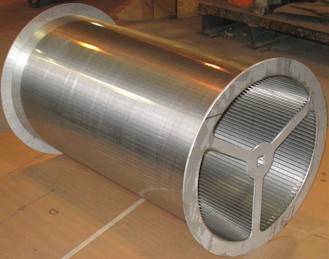

Rotary Screens typically use wedgewire for the screening media. The externally fed unit
(below) has a spiral wound wedgewire screen drum 36" OD x 120" long. Picture is
courtesy of IPEC Consultants.
